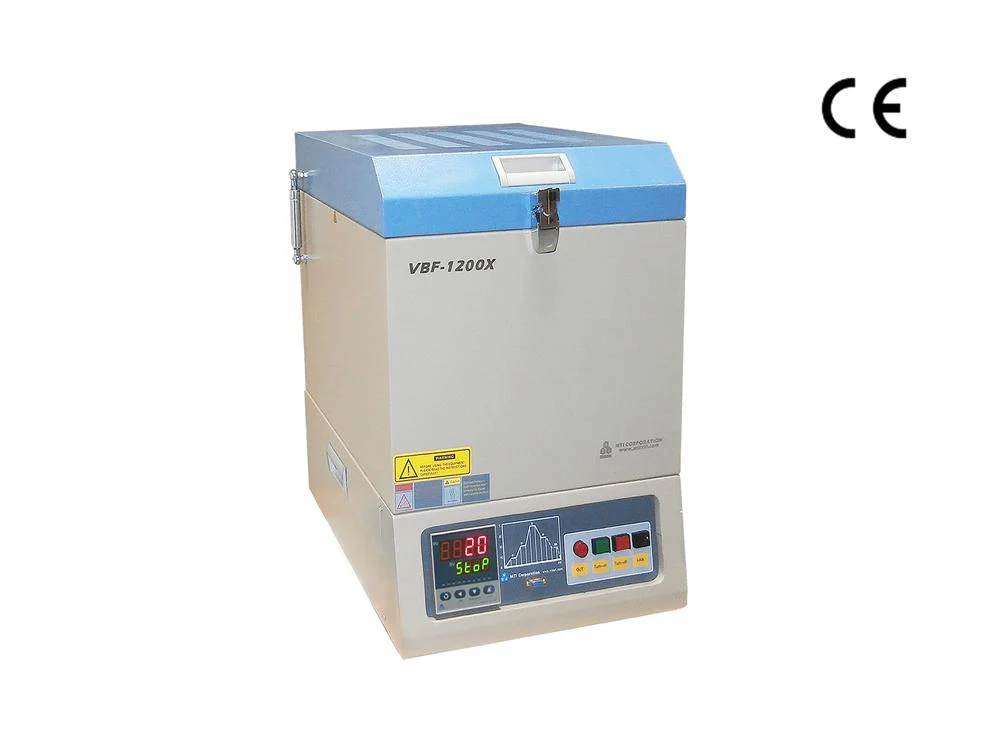

1200°C Top-loading Muffle Furnace with 9.5"Dia x 8.6"H ( 9 Liter) Chamber & Controller - VBF-1200X

Product image 1
1 / 3

1200°C Top-loading Muffle Furnace with 9.5"Dia x 8.6"H ( 9 Liter) Chamber & Controller - VBF-1200X

Features
  • The Crucible Furnace has a large chamber (9.5"d x 8.6"H, 9 liters ) for sintering ceramic parts and components in Lab.
  • High-quality ceramic fiber insulation
  • Working temperature <1200°C
SPECIFICATION:

Power
  • AC 208 ~ 240V, Single Phase, 50/60Hz, 3.5 kVA
  • Power cable is included but without a plug.
  • Please contact MTI to order a plug

 Max. Temperature
  • Continuous working temperature: < 1200°C

 Max. Heating Rate
  • <30 °C /min

Temperature controller
  • PID automatic control and auto-tune function.
  • 30 programmable segments for precise process
  • Built-in protection for over-heated and broken thermocouple

Thermocouple
  • Type K thermocouple

Laptop and software Control (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview Based Temperature Control System (MTS03)enables users to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces.

 Temperature Stability
  • +/- 1 °C

 Heating Element
  • Fe-Cr-Al Alloy doped by Mo
Certificate
  • CE Certified
  • NRTL Certification is available upon request, additional charges will apply



$1,749.30

Original: $4,998.00

-65%
1200°C Top-loading Muffle Furnace with 9.5"Dia x 8.6"H ( 9 Liter) Chamber & Controller - VBF-1200X—

$4,998.00

$1,749.30
