1650°C Reculating Steam Corrosion and Thermal shock Testing Furnace GSL-1700X-80CVD

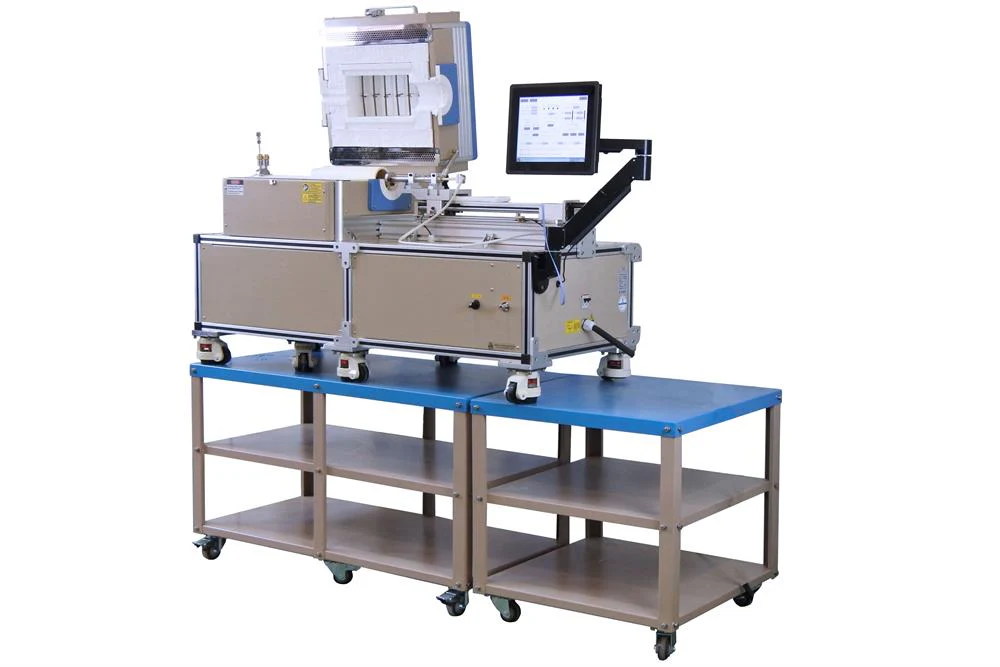

The high-temperature steam-corrosion and thermal shock cycle test furnace GSL-1700X-80CVD can reach 1650 °C, and its continuous working time is 1600. It consists of three parts: a water vapor generator, a heating furnace, and a sample-delivery mechanism. The thermal shock cycling test is easier to perform with customizable cycling parameters(Temperature, Time, and Cycles) via dedicated software.

SPECIFICATIONS

Features
  • The steam intake is made of a 3mm outer diameter platinum-rhodium alloy pipe.
  • The outside of the PT tube and alumina tube is protected by flowing gas.
  • Three alumina/SIC tubes were used to support the sample, and a B-type thermocouple is used to measure the temperature of the sample.
  • The alumina crucible and corundum tube splicing structure prevents vapor from spilling into the furnace and prevents cracking.
  • Easy access furnace structure facilitates the replacement of ceramic parts.
  • The steam vapor evaporation and gas flow can be customized at extra cost.
Power
 9 KW Max
Input Voltage
 AC 208 - 240V 50/60Hz two phase (≥50A air breaker, 4Ω ground wire is required)
Heating Elements

Silicon molybdenum rod

Processing tube
  • High-purity Alumina tube: 60 OD x 50 ID x 1100L, mm is included
  • Air-tight flanges are included
Heating Zone Length
400mm
Working Temperature
 <1600°C Continuous, 1650 °C (<30 min) Max
Recommended Heating Rate
 10°C /min (≤1400), 5 /min (1400-1600)
Temperature Controllers
  • Digital temperature controller with 30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
  • Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
  • Over temperature protection and alarm allows for operation without attendants (s).
  • +/- 1ºC temperature accuracy. (Can be upgrade to Eurotherm controller with +/- 0.1 ºC accuracy)
  • DB9 port for PC connection
  • PC control module and software is included for computerized temperature control. Click here to review detailed information.

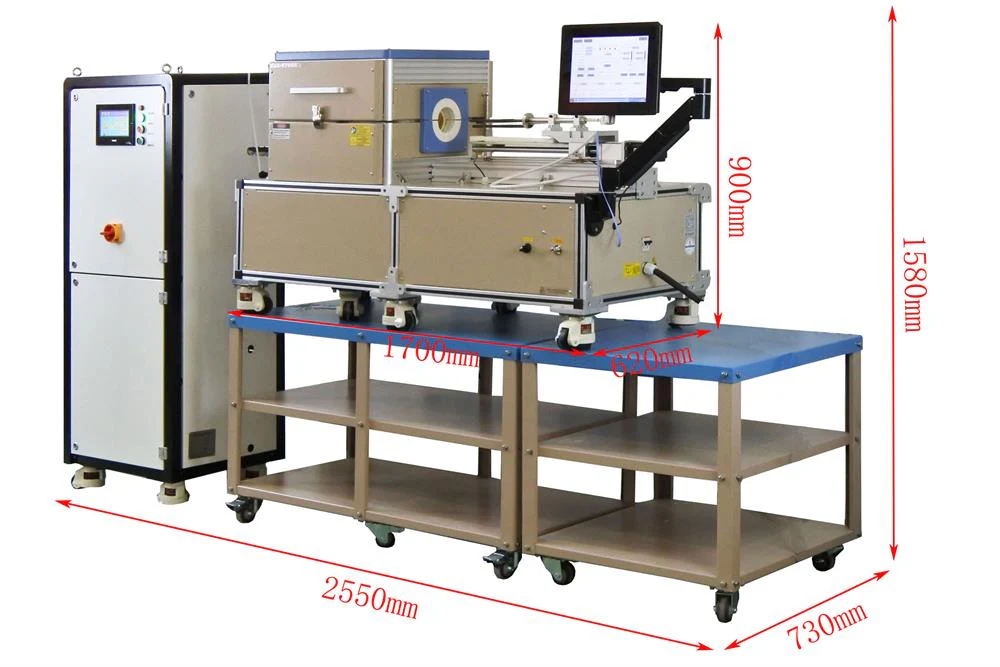

Furnace Dimensions
 Whole Set: L2550*W730*H1580mm
Furnace: L1700*W620*H900mm
Steam Generator: 600*500*1550mm
Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at the extra cost
Product Net Weight
~400Kg
$133,998.00
