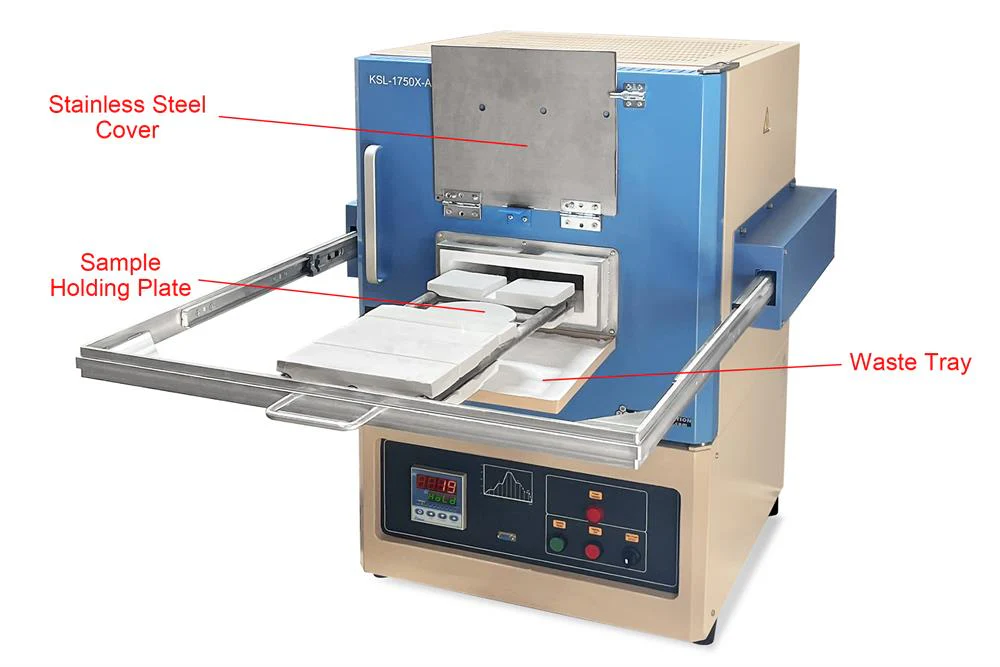

• A sample stages for quick loading and retrieving on the bottom of the furnace
• Rapid thermal heating and cooling process.
• Stages are slid on the rails for easy operation. and Time-saving
• High-purity thermal insulation material for better energy-saving
• Air-cold steel case for safe operation

• 1650 °C, continuously
• 1700 °C, < 1 hr

Heating Chamber

• KSL-1700X-A3
• 10" × 10" × 12"
• Capacity: ~ 19 L

• 208-240 VAC, 50/60 Hz
• Max. Power: 9 kW

Heating Element

• MoSi2  ( 1750 grade )

Max. Heating Rate

• ≤ 10 °C/min (Recommended)

Thermocouple

• Type B

Temperature Control

• Touchscreen display unit for easy control.
• Max. 30 programmable segments.
• ± 1 ºC precise temperature control during the dwelling
• Overheat alarm, Deviation alarm, broken thermocouple alarm
• RS 485 communication port for remote control.
• PC software and interface are included
• Overheat alarm, electric leakage protection

Laptop, software & WiFi Control (Optional)

• Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
• Labview Temperature Control System enables a user to edit temperature profile, manage heat-treatment recipes, and record and plot data for MTI furnaces.
• file, manage heat-treatment recipes, and record and plot data for MTI furnaces.
• A wireless remote control provides up to 300 meters of operating range.

Compliance

• CE Certified
• NRTL  (UL61010)  or CSA certification is available upon request at extra cost.
