Ultrasonic Spray Pyrolysis Furnace (4" Tube & Spray Nozzle and Powder Feeder) OTF-1200X-II-VT-USPA

Product image 1
1 / 3

Ultrasonic Spray Pyrolysis Furnace (4" Tube & Spray Nozzle and Powder Feeder) OTF-1200X-II-VT-USPA

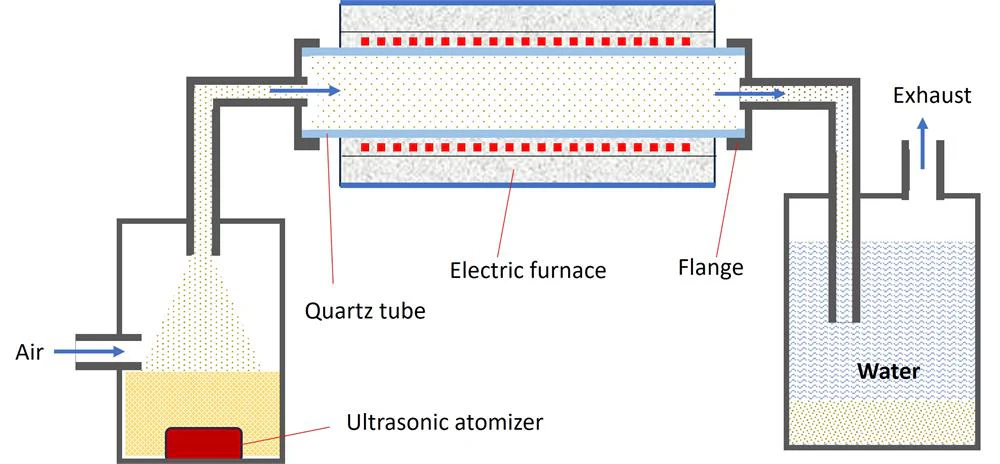

OTF-1200X-II-VT-USPA is Two Heating Zone Split Vertical Tube Furnace with a vacuum-sealed 100mm diameter quartz tube. It can introduce gas flow or liquid/ water atomization to the heating furnace, also be used for PVD, CSS or CVD coating. Two precision temperature controllers provide 30 segments heating and cooling program with +/- 1°C accuracy independently. The vertical tube furnace is installed in a heavy-duty mobile cart for easy moving.
Related Article: Large scale production of spherical WO3 powder with ultrasonic spray pyrolysis assisted by sol-gel method for hydrogen detection

SPECIFICATIONS:

Furnace Structure
  • Two Heating Zone Split Vertical Tube Furnace for longer and uniform constant temperature zone
  • The ultrasonic spray nozzle can make liquid/water atomized via gravity and low-pressure compressed air.
  • Volumetric Feeder for feeding solid powder into a furnace to form core/ shell structure
Power for Furnace 6KW (total) / each zone: 3KW
Voltage AC 208-240V Single Phase, 50/60 Hz
Max. Temperature 1200°C (<1 hr) each zone
Continuous Temperature 1100°C for each zone
Max. Heating Rate <= 20°C/min.
Temperature Accuracy +/- 1°C

Tube Size and Materials
  • One 1000mm length quartz tube is included
  • OD: 100 mm, ID. 95 mm
  • Foam ceramic blocks with alumina coating are included, which is hanged on top of flange to protect O-ring damaged by heat radiation
  • Upgrade note:( Processing tube can be replaced by mullite tube from 60 mm OD to 100 mm OD at extra cost, then furnace can be used up to 1250°C )

Heating Zone Length
  • 200mm (bottom)
  • 200mm (top)
  • 400mm (total)
Constant Temperature Zone
  • Constant temperature zone: 300 mm (+/-1°C) if two heating zones are at the same temperature
Temperature Controller
  • MET certified 30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
  • Built-in PID Auto-Tune function with overheating & broken thermocouple broken protection.
  • Over-temperature protection and alarm allow for operation without attendant(s).
  • RS485 Communication Port.
Vacuum Sealing Flange
  • Two stainless steel flanges with vacuum gauge and valves included
    A hook ring is welded inside the top flange for hanging thermal block or crucible by wire. you may choose any connectors (KF25D adapter, 1/4'' Swagelok Tube Fitting) as shown in the picture left at extra cost.
    • Gas outlet ( vacuum port ) on top with 1/4" barb connector.
    • Gas inlet on the bottom with 1/4" barb connector

Vacuum Level
  • 10E-2 Torr by mechanical vacuum pump
  • 10E-5 Torr by molecular pump
  • Leak rate < 5 mTorr / min.
Heating Element 1300°C Fe-Cr-Al Alloy doped by Mo
Laptop, Software & WiFi Control (Optional)
  • New laptop with Labview Based Temperature Control System (EQ-MTS01) enables users to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
Compliance
  • CE Certified
  • The furnace is ready to pass NRTL or CSA certification at extra cost
Application Note
Warning
  • The tube furnaces with quartz tube are designed for using under vacuum and low pressure <0.2 bars / 3 psi / 0.02 MPa. Vacuum pressures may only be safely used up to 1000°C. The flow rate for gasses should be limited to < 200 SCCM (or 200ml/min) for reducing thermal shocks to the tube.
  • Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator
