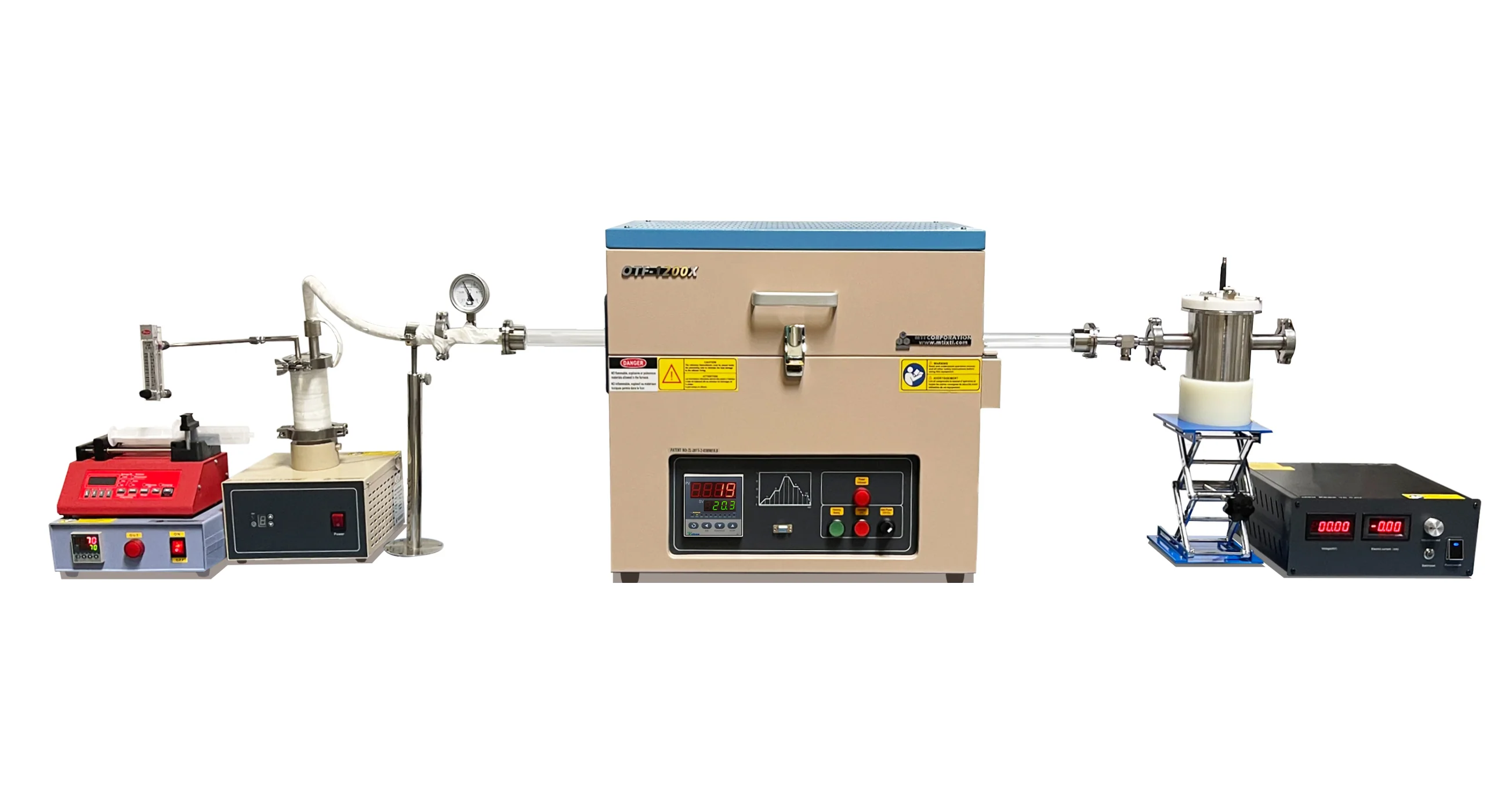

OTF-1200X-PGEP is a versatile ultrasonic spray furnace system designed for nano, core-shell structured particle synthesis. The system consists of three major modules: 1.7MHz ultrasonic enhanced bubbler, 1200°C Max. 3-zone heating tube furnace, and Electrostatic Precipitator. The processing steps of a particle include aerosol generation, thermal decomposition, and nanopowder collection. Such a system enables advanced synthetic method that provides control over particle size, morphology, and nano/microstructure.

SPECIFICATIONS

System Structure	Aerosol Generation: 1.7 MHz Ultrasonic Enhanced Bubbler can "evaporate" catalyst liquid with no heat generated. A stainless steel liquid collector connected in line with the ultrasonic bubble can prevent condensing liquid from streaming into the furnace tube chamber. Thermal Decomposition: three-zone ( 900mm length ) tube furnace can be heated up to 1200C maximum to pass the droplets flux across the temperature and atmosphere-regulated firing zone, chemical, and physical conversion processes proceed. Nanopowder Collection: 30KV electrostatic precipitator (700 ml ) can effectively collect nano-size particles from the carrier gas flow The furnace can be tilted to avoid liquid flow back atomizing tank
Tube Furnace - Thermal Decomposition	Voltage & Power	Single Phase, 208V~240V AC, 50/60 Hz (30A breaker required) Max. 7 KW
	Working Temperature	1100oC continuous 1200 oC Max. < 1 hours
	Max. Heating / Cooling Rate	< 20oC / min
	Heating Zone & Constant Temperature Zone	Three heating zone, 300+ 300 + 300 mm ( 900mm L total) Constant temperature zone: 600 mm with +/- 2oC ( if 3 zone at same )
	Heating Elements	Fe-Cr-Al Alloy doped by Mo
	Temperature Controller	Three digital temperature controllers with 30 programmable segments for precise control of heating rate, cooling rate and dwell time. Built-in over-temperature alarm and protection allow for the operation +/- 1 °C temperature accuracy. RS485 Communication Port. Precision Eurotherm controller is available with +/- 0.1 oC accuracy
	Processing Tube	One fused quartz tube is included with ID 20.5x OD 25 mm x L 1400 ( mm)
	Sealing Flanges & Fittings	Left side sealing KF flange which connects atomizing bubbler and 1" quartz tube with vacuum gauge. The right side KF flange connects to the electrostatic precipitator. Left Right
Aerosol Generation	Ultrasonic atomizing bubbler	220VAC, 1.7 MHz Ultrasonic Generator Ultrasonic power is adjustable with 8 levels 316 Stainless Steel liquid container with a fluoropolymer sealing ring The continuous or timed mode can be set. For timed mode, time can be adjusted from 30 minutes to 180 minutes. A liquid injection pump is equipped with a 60 ml plastic syringe. The speed range for the liquid injection pump is 0.004 ml/min - 70 ml/min A flow meter is included to control the carrier gas within 0-200 SCCM. A mass flow controller (MFC) is optional to precisely control the flow rate.
Nanopowder Collection	High Voltage Supply	AC 220V 50/60Hz, 30 W Max. power consumption Digital Voltmeter and Current meter, 30KV, 1.0 mA max. Output voltage and current can be set by using knobs on the front panel and read from the digital display Built-in Arc Protection Circuit
	Electrostatic Precipitator	A KF25 quick clamp and flange enables the quick coupling to the furnace processing tube Another KF25 port is built-in with the collector to connect the vacuum pump (The vacuum pump is required, but do not included in the standard package.) PTFE plates are installed on top and bottom to insulate high-voltage electrodes 12mm gas outlet built-in The electrode rod is in the shape of a cross, increasing surface area compared to cylindrical electrodes Adjustable supports keep the collector leveled with the furnace tub Double layer design, please check the picture shown on the left
Net Weight		~150Kg
Dimensions		( click the picture to see details)
Warranty		One-year limited manufacturer warranty with lifetime support (consumable parts such as furnace liner, processing tubes, and O-rings are not covered by the warranty, please order replacements at related products below).
Laptop, software & WiFi Control (Optional)		Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 Labview-Based Temperature Control System (MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
